I seem to have stumbled on something of a bug in Gladius or its rendering backend CubicVR.js. More likely, I am just doing something wrong.

Whatever the reason, I am seeing different things when I place a camera above my solar system simulation than I do when I place the camera above the Earth. In the former I see the expected retrograde motion. In the latter, I do not. This could a bug somewhere in the Gladius stack, but I think it more likely that I am doing something wrong.

So instead of using the same Gladius "camera" and placing it differently between page loads, I am going to try to use two different cameras and switch between the two. I know that CubicVR.js can handle this—it include a multi-camera simulation (source). The question is, can I do the same in Gladius?

I rename the original camera as "camera1". The remainder of the camera definition remains the same:

    space.add( new engine.simulation.Entity( "camera1",
      [
        new engine.core.Transform( [0, 0, 0] ),
        new cubicvr.Camera({
          targeted: true,
          fov: 75
        }),
        new cubicvr.Light()
      ]
    ));

(I don't believe that "fov" actually changes the field of view)

This gives me my expected above-the-solar-system view (with "constellation" markers):



I place the second camera 5 units behind the Earth and 2 above it:

    space.add( new engine.simulation.Entity( "camera2",
      [
        new engine.core.Transform( [-5, 0, -2], [3*Math.PI/2, 0, Math.PI/2]),
        new cubicvr.Camera(),
        new cubicvr.Light()
      ]
      [],
      space.findNamed( "earth" )
    ));

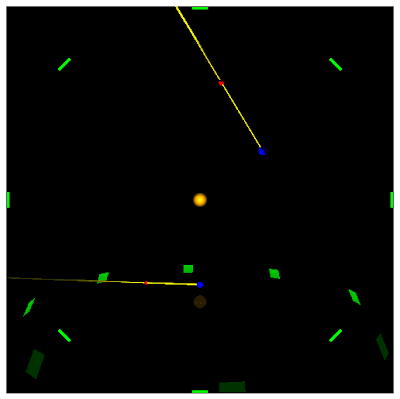

When I reload the page, something unexpected happens—the views from the two cameras are superimposed on each other:



The second view is really too close to Earth to see anything (and "fov" has no effect), so I move waaaay back:

    space.add( new engine.simulation.Entity( "camera2",
      [
        new engine.core.Transform( [-100, 0, -25], [3*Math.PI/2, 0, Math.PI/2]),
        new cubicvr.Camera({fov: 10.0}),
      ],
      ['@transform', '@camera', '@light'],
      space.findNamed( "earth" )
    ));

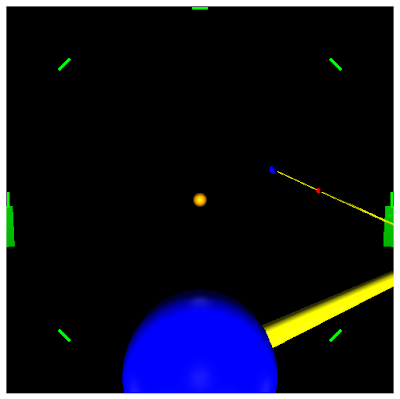

With that, I get a better view at the start of retrograde:



And after:



Even here it is difficult to spot the retrograde motion in the second camera (the view at the bottom). Normally Mars moves right-to-left, but in the above two it moves from left-to-right. The right-to-left movement mostly takes place when Earth revolution pushes Mars to the edge of vision.

So it seems that I need to come up with a better way to view Mars' retrograde motion from Earth's point of view. Likely I will have to fix the camera to Mars rather than straight out into space. It would also be good to figure out how to disable one or the other camera.
